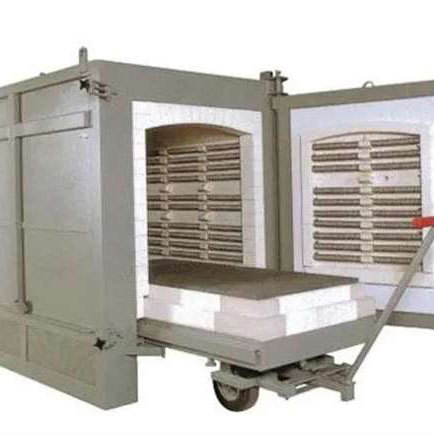

Car Type Annealing Furnace
The car type of annealing furnace is an energy-saving cycle furnace, that can save energy by 30%.

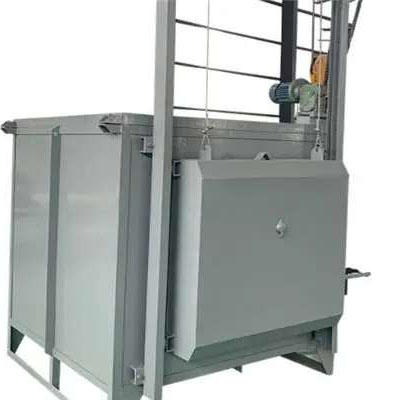

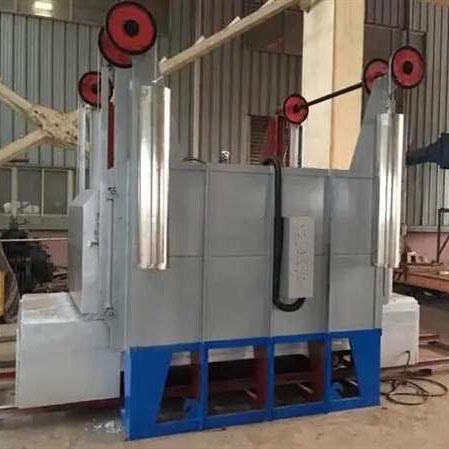

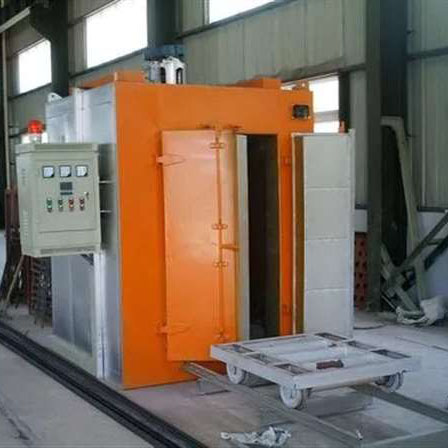

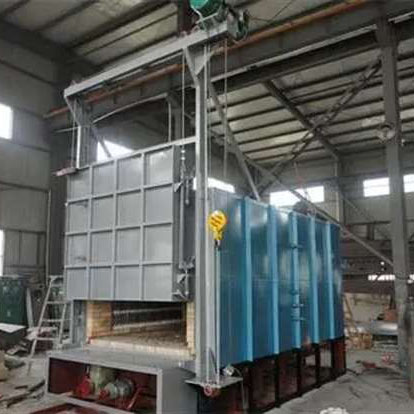

Photos of
Detailed introduction
Description
This car type annealing furnace is characterized by energy saving and electricity saving, which can save energy by 30%.
Its furnace wall can move back and forth, left and right, and only the vehicle and the furnace for discharging materials are determined, which solves the problem of the net weight of the vehicle and improves the service life of the facility.
Range of Work
The trolley-type annealing furnace is widely used in chemical industry, petroleum, food, metallurgy, machinery, light industry, electric power, shipbuilding, papermaking, mining, central heating and other industrial sectors.
With the development of social productivity, its application in various industries is becoming more and more extensive.
Structure
| Introduction of Structure | ||
Main frame: | Frame of Annealing Furnace: | It is welded by various types of steel. |
Outer Frame: | It is made of channel steel as the main beam. | |
Hoarding: | It is made of cold thin plate. | |
Car: | It is made of channel steel as the main beam | |
Bottom, Front, and Rear End Plates: | They are made of middle plate. | |
Transmission Part: | Car Drive: | It uses a motor and a reducer to drive a set of driving wheels at the front end through a chain. |
Furnace Door Drive: | It adopts electric hoist for electric lifting. | |
Sealing Condition: | Car and Furnace: | It adopts a labyrinth structure. |
Furnace Door: | It is sealed with a cylinder pressing mechanism. | |
Pressure Part of Car: | It is built with high-alumina bricks | |
Lower Part: | It is added with insulation bricks for insulation. | |
