Aluminum Bar Heating Furnace (for short bar)
An aluminum bar heating furnace is used for short rod heating before the extrusion of aluminum profiles.

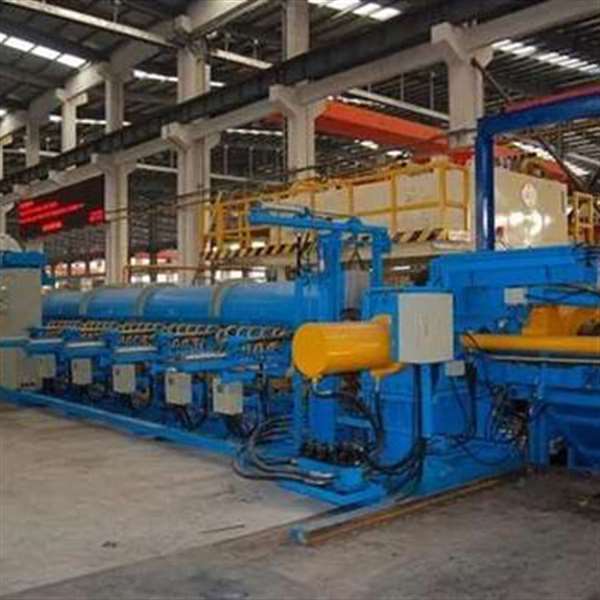

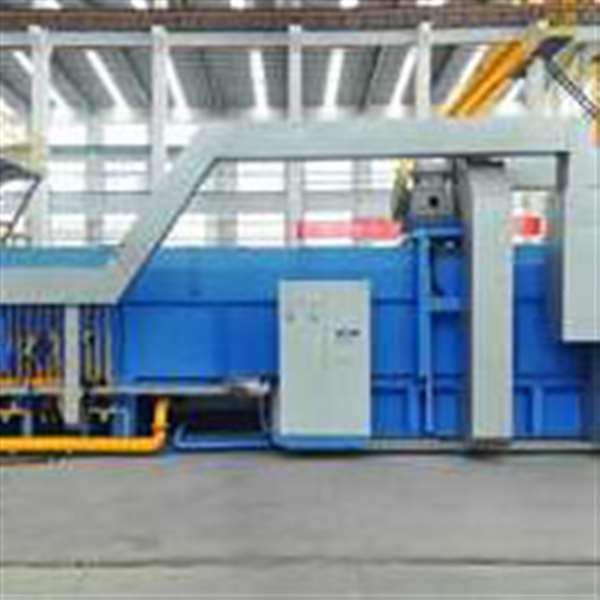

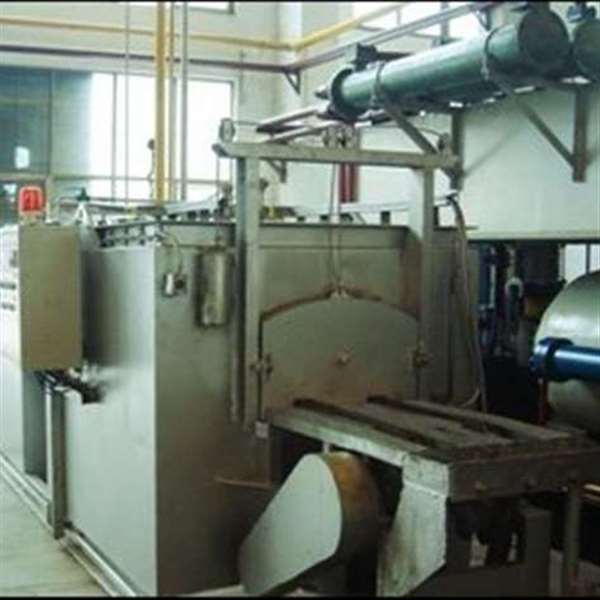

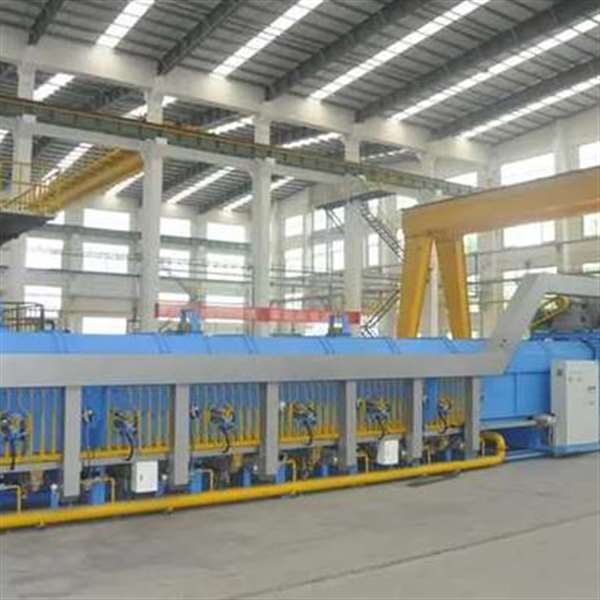

Photos of
Detailed introduction
Description
1. It adopts a new structure design, which has the characteristics of low energy consumption, energy saving, and water saving.
2. The temperature is controlled by a temperature control instrument, and the accuracy of the furnace temperature is high.
3. Good thermal insulation performance, simple structure, and convenient maintenance.
4. The temperature of the aluminum rod is uniform and the product quality is high.
5. The roof of the combustion chamber adopts a high-strength and high-temperature-resistant prefabricated structure, which has a long service life.
Specifications and Models
Generally matched with extruders, the commonly used specifications are 350T, 500T, 600T, 800T, 1250T, 1600T, 2200T, and 2500T, and the structure of double furnaces can be designed according to user needs.
Material and Structure
| Material Introduction of Each Part of The Equipment | |
Shell Exterior: | It is welded by a 5 mm thick ordinary steel plate and section steel. |
Inner Alchemy: | It is made of high-strength lightweight refractory materials. |
The Middle: | There is special insulation. |
The Bottom: | It is a roller table composed of heat-resistant cast steel rods that can rotate freely. |
Range of Work
This furnace is used with extruding equipment, it can heat aluminum rods to a set temperature, making it easier to squeeze them into a particular shape.
