Aluminum Alloy Rapidly Melting Furnace
The aluminum alloy rapid centralized melting furnace adopts the non-clamp pot design, which effectively increases the service life of the melting furnace and reduces material loss.

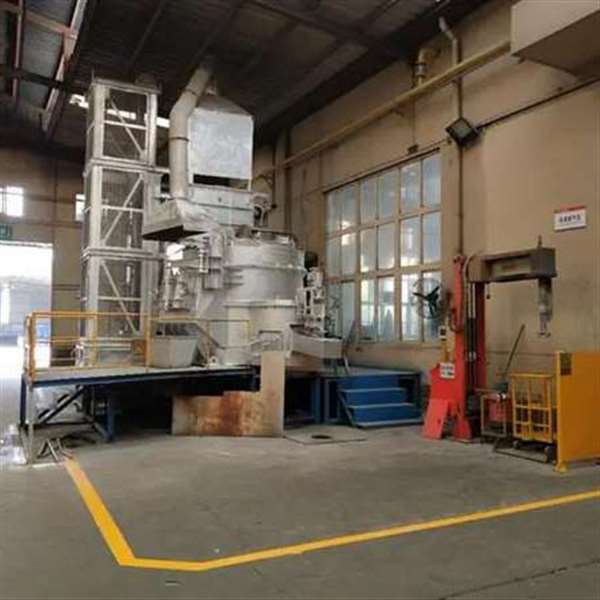

Photos of
Detailed introduction
Description
The aluminum alloy rapidly melting furnace is a new type of high-efficiency and energy-saving aluminum melting furnace developed according to the aluminum smelting process.
It is mainly used for smelting and heat preservation of aluminum ingots, which can well meet the aluminum smelting process. The furnace is designed without a crucible for longer service life and less material damage.
Main Technical Parameters
| Aluminum Alloy Rapidly Melting Furnace | |||||||
|---|---|---|---|---|---|---|---|
Model | Melting Quantity (kg/h)
| Burner Capacity | Bath Capacity (kg)
| Outline Dimension | |||
Melting Burners (kcal/ h)
| Heat-insulating Burner (kcal/ h)
| Overall Length (mm)
| Overall Bandwidth (mm)
| Total Height (mm)
| |||
FRM-300 | 300 | 20×104 | 20×104 | 1000 | 5300 | 2900 | 5500 |
FRM-500 | 500 | 20×104 | 20×104 | 1500 | 5600 | 3500 | 6500 |
FRM-750 | 750 | 30×104 | 30×104 | 2000 | 6000 | 3850 | 6700 |
FRM-1000 | 1000 | 30×104×2 | 40×104 | 2400 | 6100 | 4300 | 7150 |
FRM-1500 | 1500 | 30×104×2 | 60×104 | 3000 | 6350 | 4400 | 7200 |
FRM-2000 | 2000 | 40×104×3 | 60×104 | 5000 | 8000 | 4600 | 7500 |
Features:
1. No crucible design, more energy saving, and environmental protection;
2. High-alumina anti-penetration refractory material is used, which does not occupy slag or hang slag, and the service life of the furnace lining is about five years;
3. Using microporous nano-insulation board and aluminum fiber insulation material, the average temperature rise of the furnace wall is low;
4. The control system adopts PLC mode, which makes the operation of the equipment safer and more reliable. We can adopt different man-machine interfaces according to user needs;
5. Using high wind pressure direct flame burner, the comprehensive burning loss of materials is less than 1.5%;
6. Dissolving capacity: 250kg/h-3000kg/h
7. Fuels with different properties and calorific values can be selected, such as light oil, liquefied petroleum gas, natural gas, city gas, etc.
